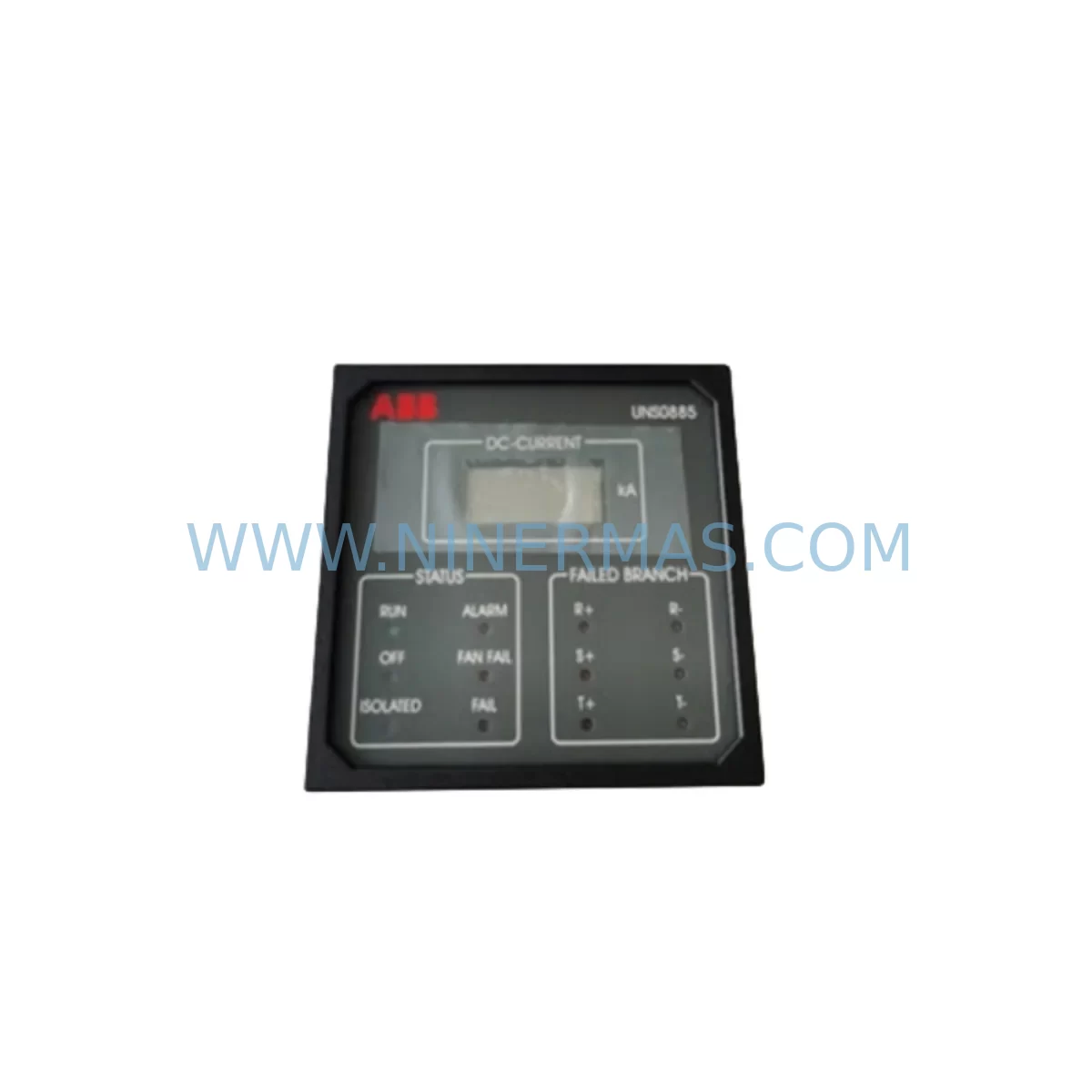

ABB 3BHB006943R0002 Safety-Reliable Analog Input for Critical Sites

ABB 3BHB006943R0002 Safety-Reliable Analog Input for Critical Sites

The ABB 3BHB006943R0002 (UNS0885A-Z, V2) is a high-integrity analog input module engineered for ABB’s Symphony Plus (formerly INFI 90) Distributed Control System. Designed to operate continuously in the most demanding industrial environments, this module delivers precise signal acquisition, robust noise immunity, and uninterrupted loop integrity across critical process control applications. Whether deployed in petrochemical refineries, power generation facilities, mining operations, or continuous manufacturing plants, the UNS0885A-Z V2 is built to sustain safe, reliable control under conditions where failure is not an option.

Industrial control systems face relentless threats: electromagnetic interference from variable frequency drives and high-voltage switchgear, voltage transients from inductive load switching, signal drift caused by thermal cycling, and mechanical vibration from rotating machinery. The 3BHB006943R0002 addresses each of these challenges through hardware-level shielding, galvanic isolation on all analog channels, and a thermally stable design that maintains calibration accuracy across wide operating temperature ranges. Its V2 revision incorporates enhanced surge protection circuitry, reducing the risk of channel damage from field-side lightning strikes or capacitive discharge events — a critical improvement for outdoor substations and exposed field junction boxes.

In safety-critical control architectures, signal integrity is non-negotiable. The UNS0885A-Z V2 supports 4–20 mA current loop inputs with wire-break detection, enabling the DCS to immediately identify open-circuit faults before they propagate into false process readings or spurious safety system activations. This capability is essential in interlock loops where a drifting or lost signal could trigger an unplanned shutdown or, worse, mask a genuine process hazard. By providing continuous self-diagnostics and fault reporting to the Symphony Plus controller, the module allows maintenance teams to act on predictive alerts rather than reactive failures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reliable analog signal acquisition is only one layer of a comprehensive control cabinet protection strategy. In Symphony Plus and INFI 90 architectures, the 3BHB006943R0002 operates in close coordination with a family of complementary modules, each addressing a specific failure mode that could compromise process safety or availability.

Power integrity is the foundation of every reliable control cabinet. The UNS0881A-P (HIEE300766R0001) redundant power supply module provides the regulated backplane voltage that the UNS0885A-Z V2 and its neighboring modules depend on. In high-availability installations, dual UNS0881A-P units operate in hot-standby configuration, ensuring that a single PSU failure does not interrupt analog signal acquisition. Paired with the UNS0119A (3BHB002483R0001) bus interface module, the backplane communication path between the analog input module and the main controller remains protected against single-point failures.

On the controller side, the PPCDS (3BHE024577R0101) processor module executes the control strategy that consumes the analog values delivered by the UNS0885A-Z V2. Ensuring that the processor receives clean, validated signals — free from drift, noise, or wire-break artifacts — is precisely the role this analog input module fulfills. In plants where the PPCDS has been upgraded from legacy IMMFP12 or IMMFP04 processors, the UNS0885A-Z V2 provides backward-compatible signal conditioning that preserves existing field wiring investments.

Analog outputs that close control loops back to field actuators are handled by the UNS0883A (3BHB003688R0001) analog output module. In flow control, pressure regulation, and temperature control loops, the UNS0885A-Z V2 reads the process variable while the UNS0883A drives the control valve or positioner — together forming a complete, isolated analog control loop within the same Symphony Plus chassis. For digital interlock signals, the DSDX451 (3BHE022291R0101) digital I/O module handles discrete inputs and outputs, including emergency shutdown (ESD) contact signals that must be processed alongside the analog measurements from the UNS0885A-Z V2.

Communication integrity between the DCS and remote I/O panels or safety systems is managed by the UNS0880A (3BHB000651R0101) communication module, which bridges the Symphony Plus backplane to fieldbus or serial communication networks. In installations where the UCI (3BHE014070R0001) unit controller interface is used for supervisory integration, the analog data collected by the 3BHB006943R0002 flows through this communication layer to SCADA and historian systems. Relay output functions — such as alarm annunciation and motor starter control — are handled by the UNS0868A (HIEE300661R0001) relay output module, which operates in the same control cabinet and shares the same backplane power infrastructure.

For plants running mixed ABB DCS generations, the PP C907 AE101 (3BHE024855R0101) processor and the NTAI05 analog input termination unit represent adjacent components in the migration path from INFI 90 to Symphony Plus. Understanding the full module ecosystem ensures that spare parts procurement — including the 3BHB006943R0002 — is aligned with the actual installed base, preventing compatibility mismatches during emergency replacements.

Critical Industrial Safety Applications

The ABB 3BHB006943R0002 UNS0885A-Z V2 is deployed across the most demanding process industries, where control system reliability directly determines operational safety and regulatory compliance.

In petrochemical and refinery applications, the module monitors critical process variables including reactor temperatures, column pressures, and flow rates in hydrocarbon processing units. Its galvanic isolation and surge protection are essential in environments where ground potential differences between field instruments and control room equipment can introduce common-mode noise that corrupts analog readings. A single erroneous temperature reading in a catalytic cracker or distillation column can trigger a spurious ESD activation, causing unplanned shutdowns that cost hundreds of thousands of dollars per hour.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the UNS0885A-Z V2 acquires analog signals from turbine speed sensors, generator excitation feedback, and boiler drum level transmitters. The module’s ability to maintain calibration accuracy under the high-vibration, high-temperature conditions of a turbine hall makes it a preferred choice for plant engineers responsible for continuous availability targets above 99.9%.

In mining and mineral processing, the module operates in environments characterized by heavy dust loading, high humidity, and severe electrical interference from large motor drives and conveyor systems. Its robust EMI immunity ensures that analog signals from belt scale transmitters, flotation cell level sensors, and crusher load cells remain accurate even when large variable-speed drives are switching nearby. In water and wastewater treatment plants, the 3BHB006943R0002 monitors flow, pH, turbidity, and chemical dosing rates — parameters where signal accuracy directly affects both process efficiency and regulatory discharge compliance.

In metallurgical and steel plants, the module withstands the extreme thermal radiation and electromagnetic environment of electric arc furnaces and continuous casting lines. Port and marine terminal automation systems rely on the UNS0885A-Z V2 for crane load monitoring, conveyor speed feedback, and tank farm level measurement — applications where a control system failure can create both safety hazards and significant cargo damage liability.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3BHB006943R0002?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified analog input functions within the warranty period, NINERMAS will provide a replacement or repair at no additional cost. The warranty period begins from the date of confirmed delivery and applies to modules that have been installed and operated within the published environmental and electrical specifications.

Q2: What pre-shipment testing is performed on the UNS0885A-Z V2 before dispatch?
Every 3BHB006943R0002 unit undergoes a full functional test prior to shipment. This includes channel-by-channel analog input verification across the full 4–20 mA range, wire-break detection confirmation, backplane communication handshake testing, and visual inspection for physical damage or component degradation. Burn-in testing is performed to screen for early-life failures before the module reaches the customer’s site. A test report is available upon request.

Q3: Is the 3BHB006943R0002 compatible with both Symphony Plus and legacy INFI 90 systems?
Yes. The UNS0885A-Z V2 is designed for backward compatibility with INFI 90 IMMFP-series backplanes as well as current Symphony Plus S+ Control hardware. Before installation, customers should verify the backplane slot assignment and I/O configuration in the DCS engineering tool (Control Builder or equivalent) to ensure the module address matches the existing configuration. NINERMAS technical support can assist with compatibility verification for specific installed base configurations.

Q4: Can NINERMAS guarantee long-term supply of the ABB 3BHB006943R0002 for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of end-of-life and long-lead ABB Symphony Plus and INFI 90 spare parts, including the 3BHB006943R0002, to support plant maintenance programs with multi-year procurement horizons. For customers managing critical spare parts lists (CSPLs) or insurance spare inventories, NINERMAS offers volume reservation agreements to ensure availability when emergency replacements are needed. Contact our team at sale@ninermas.com to discuss long-term supply arrangements.
