ABB 3BAB002916R0001 UFC721AE Service-Ready Spare Part

ABB 3BAB002916R0001 UFC721AE Service-Ready Spare Part for Industrial Maintenance

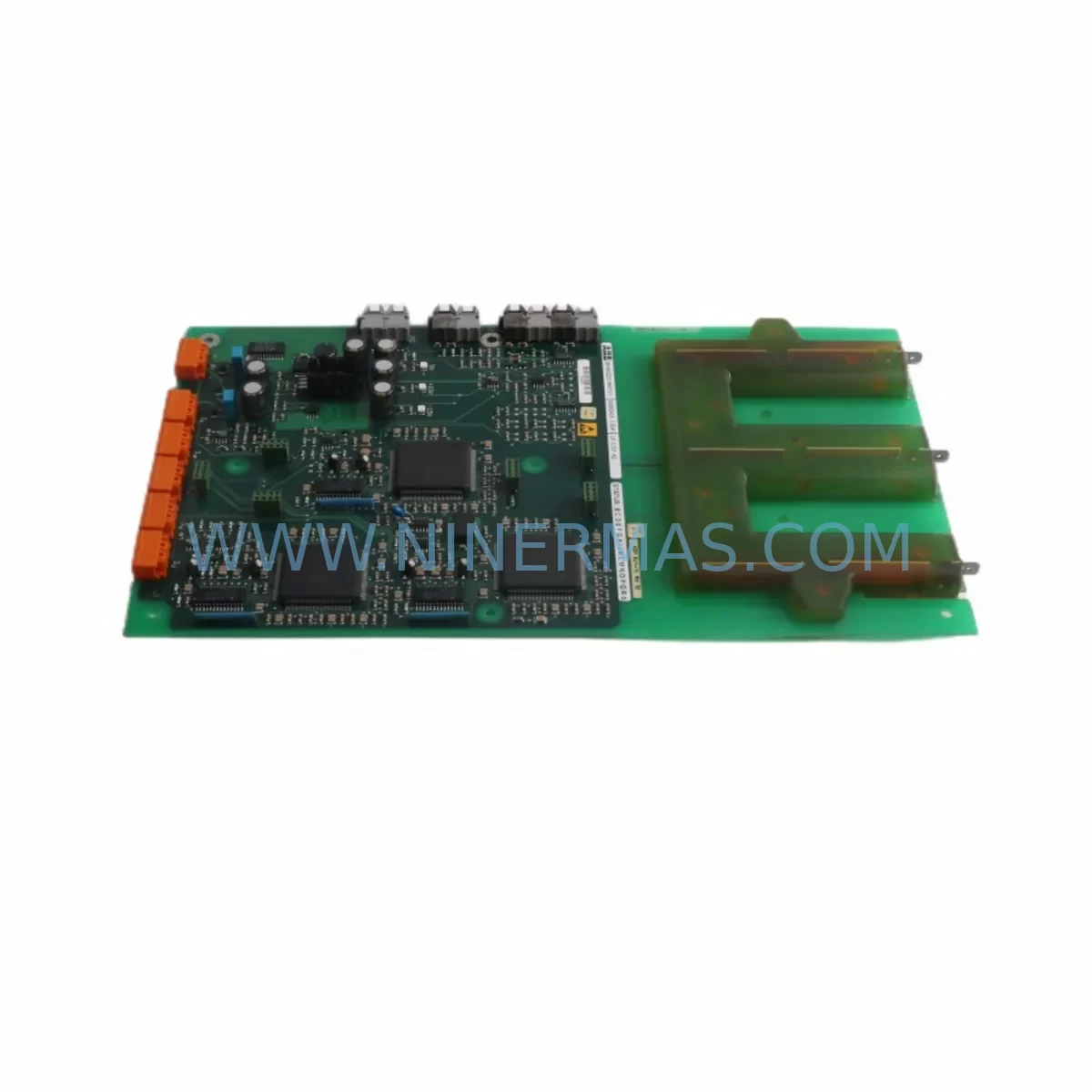

The ABB 3BAB002916R0001 UFC721AE is a genuine control board spare part designed for ABB ACS series AC drives, widely deployed across industrial automation environments including manufacturing lines, process control systems, water treatment facilities, and energy infrastructure. When a drive control board fails, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready replacement for the UFC721AE is the fastest path to restoring full system operation without compromising compatibility or long-term reliability.

This unit is stocked and dispatched from NINERMAS inventory as a tested, original-specification spare part. Each unit undergoes pre-shipment functional verification to confirm electrical integrity before leaving our warehouse. With a 12-month warranty covering manufacturing defects and operational failures under normal industrial use, procurement engineers can confidently include this part in both emergency replacement orders and planned annual maintenance budgets.

The UFC721AE board serves as the primary control interface within the ACS drive cabinet, managing signal processing, I/O coordination, and communication between the drive’s power stage and the supervisory control layer. Failure modes typically include firmware corruption, capacitor degradation, thermal stress damage, or communication faults triggered by voltage transients on the control bus. Identifying and replacing this board promptly prevents cascading failures that can damage connected power modules, gate driver boards, and DC bus components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the UFC721AE (3BAB002916R0001) in the field is rarely an isolated task. Maintenance engineers working on ACS series drive cabinets should treat this board replacement as an opportunity to inspect and verify the condition of all adjacent components in the same electrical circuit and control architecture. A systematic approach reduces the risk of repeat failures and ensures the drive returns to full operational specification.

Begin with the SMPS (Switch Mode Power Supply) module within the drive cabinet — the UFC721AE receives its 24 VDC logic supply from this unit, and a degraded power supply is a common root cause of control board failures. Verify output voltage stability under load before installing the replacement board. Similarly, inspect the gate driver board (AGDR or equivalent) for signs of thermal stress or IGBT gate signal anomalies, as control board faults are sometimes preceded by gate drive irregularities.

Check the I/O terminal blocks and signal wiring connected to the UFC721AE. Loose terminations, corroded contacts, or shielding failures on analog input cables (4–20 mA or 0–10 V process signals) can introduce noise that damages control boards over time. Inspect the fieldbus communication cable — whether PROFIBUS DP, Modbus RTU, or DDCS fiber — for continuity and correct termination resistance. A faulty communication link can cause the replacement board to fault immediately after installation.

If the drive cabinet includes an ABB RDCO-03 or RDCO-04 DDCS communication module, verify its firmware version is compatible with the replacement UFC721AE board revision. Mismatched firmware between the control board and communication adapter is a documented source of post-replacement communication errors. Likewise, if the system uses an ABB RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module, confirm adapter parameter settings are preserved and re-uploaded after board swap.

For drives integrated with ABB ACS800 or ACS600 series systems, also inspect the pulse encoder interface board (RTAC or RAIO module) if the application uses closed-loop speed control. Encoder signal integrity directly affects control board stability. Review the main contactor and input fuse assembly — a blown fuse or welded contactor contact can cause voltage spikes that damage the replacement board during first power-up.

Procurement engineers building annual spare parts kits for ACS drive systems should consider stocking the UFC721AE alongside the AINT-02 or AINT-14 inverter control board, APOW-01 power supply board, and a set of DC bus capacitor banks appropriate for the drive frame size. Including a spare RMIO-11C or RMIO-02C control unit for ACS800 systems ensures coverage across the most failure-prone components in a single procurement cycle. Signal isolators on analog I/O channels and surge protection devices on digital inputs are low-cost additions that significantly extend control board service life.

Site Replacement Workflow

When the UFC721AE (3BAB002916R0001) is identified as the failed component — confirmed through ABB drive fault codes, diagnostic LED patterns, or direct board-level testing — follow this structured replacement workflow to minimize downtime and ensure a clean return to service.

Step 1 — Isolation and Lockout: De-energize the drive following site LOTO (Lockout/Tagout) procedures. Wait the full DC bus discharge time (minimum 5 minutes for most ACS frame sizes) before opening the cabinet. Verify bus voltage with a calibrated meter before touching any internal components.

Step 2 — Parameter Backup: If the drive is still partially functional, use ABB DriveWindow or the drive keypad to export all parameter sets to a PC or memory unit before removing the control board. The UFC721AE stores drive-specific configuration; a backup prevents re-commissioning delays.

Step 3 — Board Removal: Photograph all connector positions and cable routing before disconnecting. Label each connector if not already marked. Remove the UFC721AE by releasing the board retention clips and carefully extracting it from the backplane connector. Avoid flexing the board or touching exposed component surfaces.

Step 4 — Compatibility Verification: Confirm the replacement 3BAB002916R0001 board revision matches or is a documented upgrade from the removed unit. Check ABB’s compatibility matrix or contact NINERMAS technical support if revision differences are noted.

Step 5 — Installation and Parameter Restore: Seat the replacement board firmly onto the backplane connector. Reconnect all cables in the documented order. Power up the drive and restore parameters from backup. Run a no-load test before reconnecting the motor load.

Step 6 — Functional Verification: Confirm all I/O signals, fieldbus communication, and speed reference inputs are operating correctly. Log the replacement in the site maintenance record with the board serial number and installation date to support warranty tracking and future fault analysis.

This workflow applies equally to emergency breakdown replacements and planned preventive maintenance shutdowns. Having a pre-tested UFC721AE spare on-site reduces the critical path of any ACS drive repair to under two hours for experienced maintenance teams.

Spare Parts Support FAQ

Q1: Is the 3BAB002916R0001 UFC721AE a direct drop-in replacement for all ACS series drives?
The UFC721AE is designed for specific ACS series drive frame sizes and hardware revisions. While it is compatible across a range of ACS600 and ACS800 configurations, compatibility should be verified against the drive’s nameplate data and ABB’s spare parts documentation before ordering. NINERMAS can assist with compatibility confirmation based on your drive serial number and existing board revision.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures occurring under normal industrial operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, installation date, and a description of the failure. Replacement or repair will be arranged promptly.

Q3: Can NINERMAS supply the UFC721AE on an ongoing basis for long-term maintenance contracts?
Yes. NINERMAS maintains stock of ABB ACS series spare parts including the 3BAB002916R0001 UFC721AE to support both emergency single-unit orders and bulk procurement for annual maintenance programs. Long-term supply agreements with reserved stock allocation are available for facilities managing multiple ACS drive systems. Contact our sales team to discuss volume pricing and lead time commitments.

Q4: How is the UFC721AE tested before shipment?
Every unit dispatched by NINERMAS undergoes pre-shipment electrical verification to confirm board integrity and functional readiness. Testing covers power rail stability, communication interface continuity, and I/O signal path checks. Units that do not pass verification are not dispatched. A test report can be provided upon request for quality-critical procurement processes.
