ABB 3AXD5000082992 Service-Ready Spare Part for Industrial Maintenance

ABB 3AXD5000082992 Service-Ready Spare Part for Industrial Maintenance

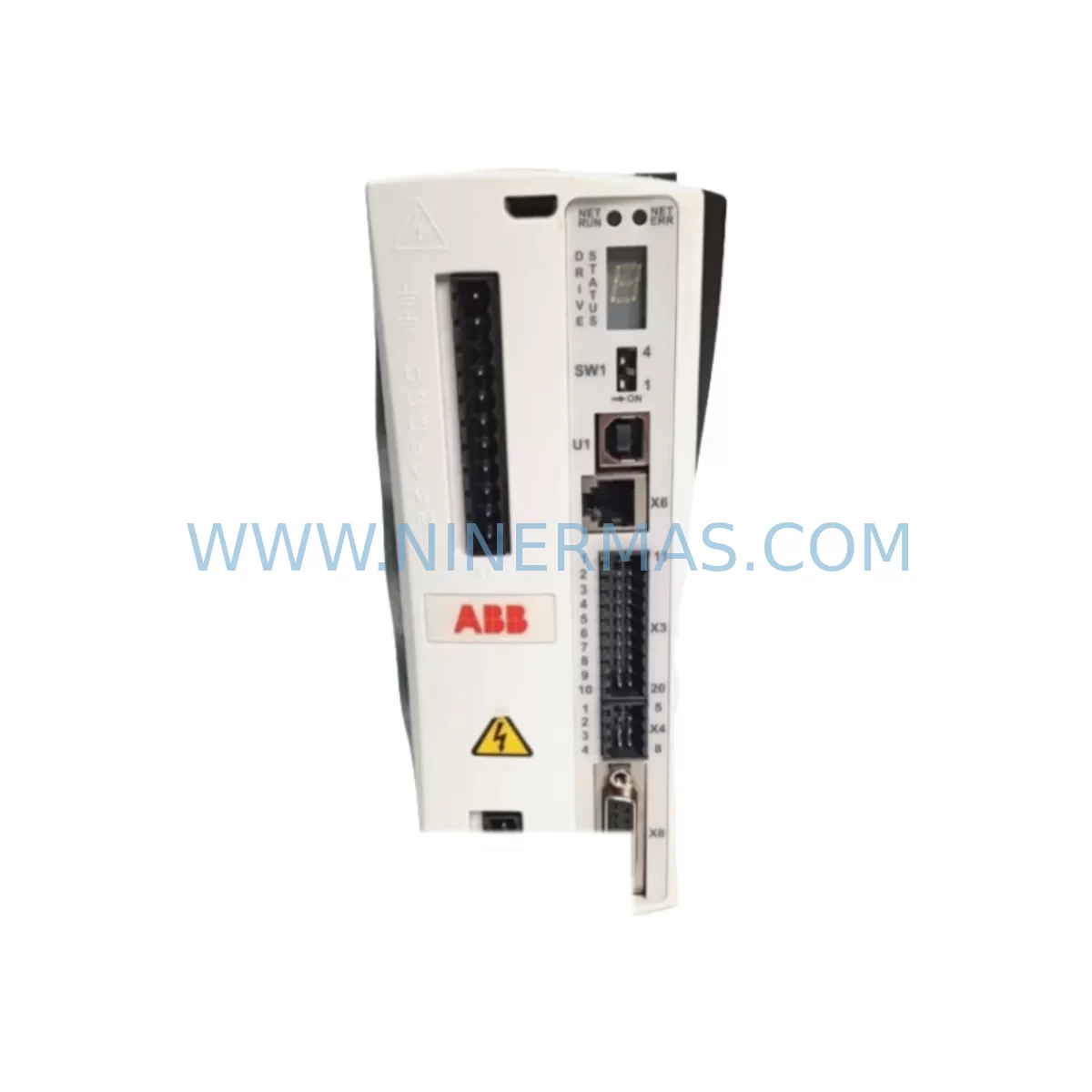

The ABB 3AXD5000082992 is an original, service-ready spare part designed for the ABB ACS880 series industrial AC drives — one of ABB’s most widely deployed variable frequency drive platforms across manufacturing, process automation, oil & gas, water treatment, and heavy industry. Sourced directly from ABB’s authorized supply chain, this component is built to OEM specification and is intended for maintenance engineers and procurement teams who require verified compatibility, reliable lead times, and documented quality assurance.

In industrial environments where unplanned downtime translates directly into production loss, having the correct spare part on hand is not optional — it is a core element of any credible maintenance strategy. The 3AXD5000082992 addresses this need by providing a drop-in replacement that eliminates the guesswork associated with third-party alternatives or obsolete stock. Whether you are responding to an emergency fault condition, executing a scheduled annual overhaul, or building out a preventive maintenance inventory for a multi-drive installation, this part is engineered to restore your ACS880 drive to full operational status with minimal intervention time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3AXD5000082992 in an ACS880 drive installation is rarely an isolated task. Experienced maintenance engineers understand that a component-level fault in a drive system is often a symptom of broader stress across the electrical circuit. A disciplined replacement workflow should include a systematic inspection of all interdependent components within the same control cabinet and power circuit.

Begin with the ACS880 power supply module — verify that input voltage levels are within specification and that no upstream surge or phase imbalance contributed to the original fault. Inspect the DC bus capacitor bank for signs of bulging, leakage, or elevated ESR, as capacitor degradation is a leading cause of drive component stress. Check the IGBT gate driver board and associated fiber optic communication cables (such as the RDCO-03 or RDCO-04 modules) for continuity and signal integrity, particularly in multi-drive configurations where inter-drive communication is critical.

Review the ACS880 I/O extension module (e.g., FIO-01 or FAIO-01) for correct terminal mapping and signal levels. Loose or corroded terminal block connections on the X1 and X2 I/O terminal strips are a common source of intermittent faults that can be misdiagnosed as drive component failures. If the installation includes a fieldbus adapter module — such as the FENA-21 Ethernet/IP adapter or FPBA-01 PROFIBUS adapter — confirm that communication parameters are intact after the replacement procedure.

For installations with an ACS880 brake chopper unit or external braking resistor, inspect the chopper IGBT and thermal interface for signs of overheating. In cabinet-mounted configurations, verify that the cooling fan assembly (including fan replacement kits such as 3AUA0000093615) is operating correctly and that airflow paths are unobstructed. Blocked cooling channels are a frequent contributor to premature component failure in high-ambient-temperature environments.

From a procurement engineering perspective, it is advisable to maintain parallel stock of the ACS880 control unit (ZCU-12 or ZCU-14), the APBU-44C branching unit for multidrive systems, and relevant signal isolator modules where analog feedback loops are present. Fuse coordination should also be reviewed — confirm that the input fuses and semiconductor fuses upstream of the drive are correctly rated and have not been weakened by prior fault events. A complete spare parts list for a critical ACS880 installation should also include the ACS880 memory unit (MFDT-01) for parameter backup and rapid drive replacement without reprogramming.

Site Replacement Workflow

When deploying the ABB 3AXD5000082992 as a field replacement, follow a structured procedure to minimize downtime and ensure system compatibility:

1. Fault Documentation: Before de-energizing the drive, record all active fault codes, warning history, and parameter settings using the ACS880 control panel (ACS-AP-I or ACS-AP-W) or the DriveComposer PC tool. This data is essential for post-replacement verification and root cause analysis.

2. Safe Isolation: Isolate the drive from the main supply and allow the DC bus to fully discharge (minimum 5 minutes, or verify with a calibrated DC voltmeter). Follow local LOTO (Lockout/Tagout) procedures. Do not rely solely on the drive’s internal discharge indicator.

3. Component Removal and Inspection: Remove the faulty component following ABB’s hardware manual for the specific ACS880 frame size. Inspect the mounting interface, connector pins, and surrounding PCB areas for secondary damage such as burn marks, cracked solder joints, or contamination.

4. Installation of 3AXD5000082992: Install the replacement part per ABB’s torque specifications. Ensure all connectors are fully seated and locking tabs are engaged. Do not apply excessive force to ribbon cable connectors.

5. Parameter Restore and Commissioning: Restore saved parameters from the memory unit or DriveComposer backup. Perform a no-load test run before reconnecting the mechanical load. Verify all I/O signals, speed references, and protection settings are functioning correctly.

6. Documentation and Warranty Registration: Record the replacement in your maintenance management system (CMMS). Retain the original packaging and part label for warranty reference. NINERMAS provides a 12-month warranty from the date of shipment, covering manufacturing defects under normal operating conditions.

This workflow is applicable whether you are replacing an aging component in a legacy ACS880 installation or restoring a drive that has suffered an unplanned fault. The structured approach reduces the risk of repeat failures and ensures that the replacement is performed to OEM standards.

Spare Parts Support FAQ

Q1: Is the ABB 3AXD5000082992 compatible with all ACS880 frame sizes?
The 3AXD5000082992 is associated with the ACS880 series platform. Compatibility with specific frame sizes (R1–R11 and above) should be confirmed against your drive’s hardware revision and serial number. Contact NINERMAS with your drive nameplate data for a compatibility verification before ordering.

Q2: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination beyond the component’s rated IP class. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with your order reference, fault description, and photographic evidence of the defect.

Q3: How is the part tested before shipment?
All units undergo a pre-shipment functional inspection and packaging integrity check. For critical applications, NINERMAS can provide additional documentation upon request. Parts are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q4: Can NINERMAS support long-term or repeat procurement of this part?
Yes. NINERMAS maintains an authorized sourcing network for ABB ACS880 series spare parts and can support scheduled procurement programs, blanket orders, and emergency stock replenishment. For high-volume or long-term supply agreements, contact our sales team to discuss lead time commitments and pricing structures.
