ABB 3AXD50000183012 ZCU-12 Safety-Reliable Drive Control Unit

ABB 3AXD50000183012 ZCU-12 Safety-Reliable Drive Control Unit for Critical Control Sites

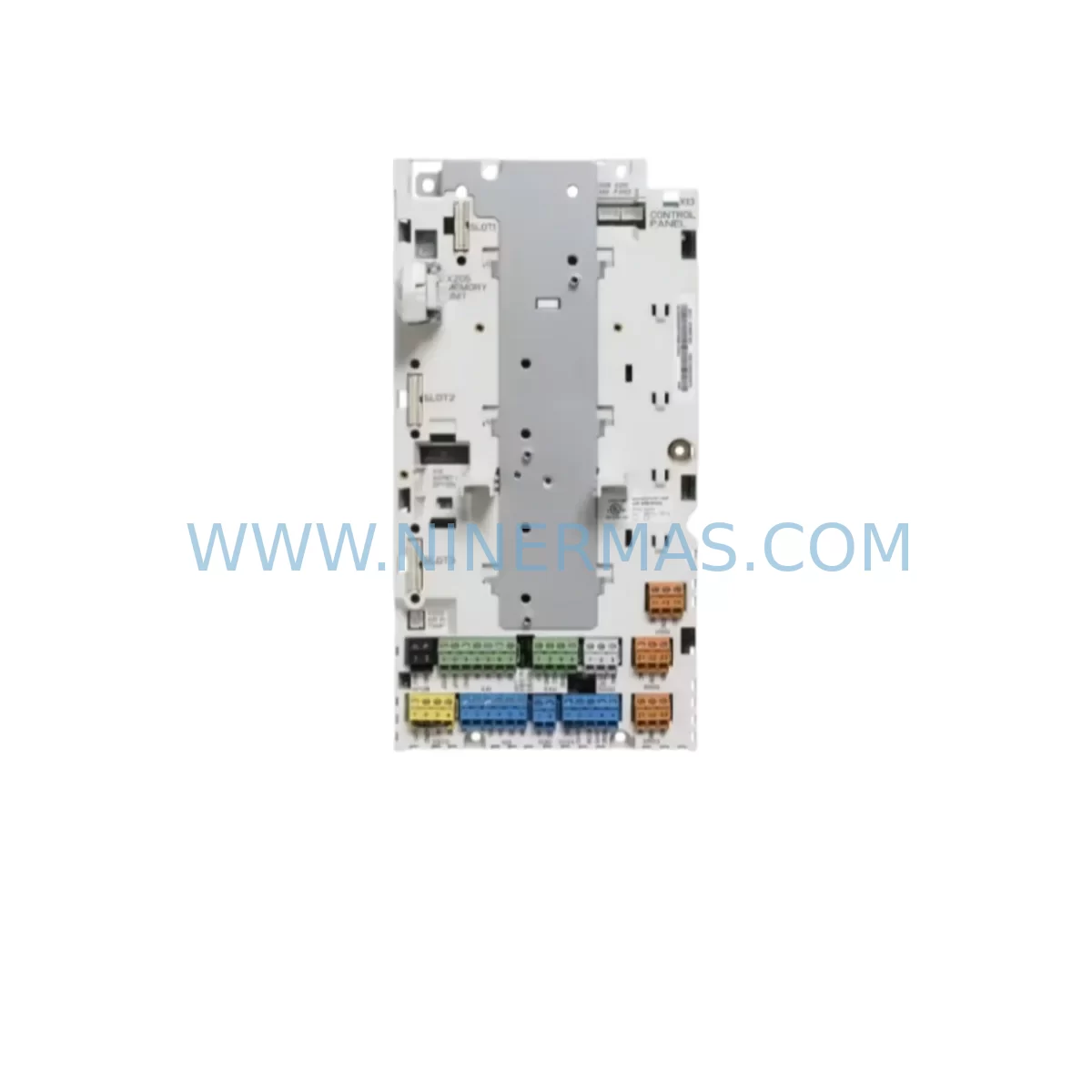

The ABB 3AXD50000183012 ZCU-12 is the core control board of the ABB ACS880 series industrial drive platform, engineered for mission-critical automation environments where control interruption, signal drift, and unplanned downtime are unacceptable risks. As the central processing and communication hub of the ACS880 drive, the ZCU-12 manages motor control algorithms, I/O coordination, fieldbus communication, and safety interlock logic — making it an indispensable component in continuous production lines, heavy-duty control cabinets, and hazardous industrial sites.

At NINERMAS, every ABB 3AXD50000183012 ZCU-12 unit is sourced from verified supply channels, undergoes outgoing inspection before shipment, and is backed by a 12-month warranty. Long-term stock availability ensures rapid spare parts replacement support for maintenance teams managing critical assets.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered ACS880 drive cabinet, the ZCU-12 control board does not operate in isolation — it functions as the nerve center of a layered protection architecture. To maximize system uptime and minimize the risk of control loop failure, maintenance engineers and system integrators typically deploy the ZCU-12 alongside a suite of complementary protection and conditioning components.

On the power input side, an ABB SACE Tmax XT series molded case circuit breaker provides upstream overcurrent and short-circuit protection, preventing catastrophic fault propagation into the drive cabinet. Paired with an ABB OVR surge protective device (SPD), the system gains robust defense against voltage transients and lightning-induced surges that could otherwise corrupt the ZCU-12’s firmware or damage its communication interfaces.

For DC bus stability — critical to the ZCU-12’s internal power supply — an ABB FOCH DC fuse or equivalent fast-acting semiconductor fuse protects the rectifier and IGBT modules from fault currents. The ABB ACS880 RDCU-12C or RDCU-02C option board can extend the ZCU-12’s communication reach, enabling seamless integration with PROFIBUS DP or DeviceNet networks in distributed control architectures.

In environments with high electromagnetic interference — such as arc furnace facilities, variable frequency drive clusters, or large motor rooms — the ABB FENA-21 EtherNet/IP adapter module provides isolated, noise-immune fieldbus connectivity, reducing the risk of communication anomalies and spurious trip signals that could trigger unplanned shutdowns. Similarly, the ABB FDNA-01 DeviceNet adapter supports legacy PLC integration without exposing the ZCU-12 to direct bus noise.

For safety interlock circuits, the ZCU-12’s STO (Safe Torque Off) terminals are typically wired in conjunction with an ABB Jokab Safety PLUTO safety PLC or a dedicated ABB ESR5 safety relay module, forming a certified SIL 2 / PLd safety loop that meets the requirements of IEC 62061 and ISO 13849. This configuration is essential in press lines, conveyor systems, and robotic cells where personnel protection is mandatory.

Encoder feedback integrity — vital for precise speed and position control — is maintained through the ABB FEN-31 HTL/TTL encoder interface module, which conditions encoder signals before they reach the ZCU-12, eliminating signal drift caused by long cable runs or ground potential differences in large industrial plants.

Finally, for cabinet thermal management in high-ambient or poorly ventilated installations, pairing the drive with an ABB ACH580 HVAC drive cooling fan assembly or an external heat exchanger ensures the ZCU-12 operates within its rated temperature envelope, preventing thermal-induced control faults and extending mean time between failures (MTBF).

Critical Industrial Safety Applications

The ABB 3AXD50000183012 ZCU-12 is deployed across the most demanding industrial sectors where control reliability directly impacts personnel safety, environmental compliance, and production continuity.

Petrochemical & Refining: In ATEX-classified zones, the ZCU-12 controls compressor drives, pump stations, and agitator motors where a control board failure could trigger emergency shutdowns or process upsets. Its STO function integrates directly with the plant’s safety instrumented system (SIS), ensuring that drive de-energization occurs within the required response time under IEC 61511.

Electric Power Generation & Transmission: In thermal power plants and hydroelectric stations, the ZCU-12 manages induced draft fan drives, boiler feed pump VFDs, and excitation control systems. Its high EMI immunity is critical in switchyard environments where high-voltage switching generates intense electromagnetic fields that can disrupt lesser control boards.

Mining & Mineral Processing: Underground conveyor drives, ball mill motors, and slurry pump systems operate in dusty, humid, and vibration-intensive conditions. The ZCU-12’s robust design and sealed connector interfaces maintain reliable operation in these harsh environments, reducing the frequency of unplanned maintenance interventions.

Water & Wastewater Treatment: Municipal pumping stations and desalination plants rely on continuous motor operation. The ZCU-12 enables precise flow control and energy optimization while its fieldbus communication capability allows remote monitoring via SCADA systems, enabling predictive maintenance before failures occur.

Metallurgy & Steel Production: Rolling mill drives, ladle crane hoists, and continuous casting line motors demand millisecond-level control response. The ZCU-12’s high-speed processing and deterministic control loop execution ensure that speed and torque references are tracked accurately even under rapid load transients.

Port & Marine Applications: Ship-to-shore crane drives, thruster control systems, and offshore platform motor drives operate in salt-laden, high-humidity environments. The ZCU-12’s corrosion-resistant board coating and wide operating temperature range support reliable performance in these coastal and marine installations.

Continuous Manufacturing: Paper mills, textile plants, and food processing lines require zero-interruption motor control. The ZCU-12’s redundant communication paths and fast fault detection minimize the risk of production stoppages caused by control board anomalies.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the ABB 3AXD50000183012 ZCU-12?
All ZCU-12 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. In the event of a verified manufacturing defect or functional failure within the warranty period, NINERMAS will arrange replacement or repair at no additional cost to the customer.

Q2: Is the ZCU-12 tested before shipment?
Yes. Every ABB 3AXD50000183012 ZCU-12 unit undergoes outgoing functional inspection prior to dispatch. This includes visual inspection, connector integrity verification, and where applicable, power-on functional checks to confirm the board is free from transit damage or latent defects.

Q3: Is the ZCU-12 compatible with all ACS880 drive variants?
The 3AXD50000183012 ZCU-12 is the standard control unit for the ABB ACS880 single drive series. Compatibility should be verified against the specific ACS880 frame size and firmware version in your installation. NINERMAS technical support can assist with compatibility confirmation — contact sale@ninermas.com before ordering if you have specific version requirements.

Q4: Can NINERMAS guarantee long-term supply for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated stock of ABB ACS880 series spare parts, including the ZCU-12 control board, to support planned maintenance schedules and emergency replacement needs. For customers with multi-site maintenance programs or annual procurement contracts, NINERMAS offers priority stock reservation and scheduled delivery arrangements.
