ABB 3ADT306300R1 SDCS-FEX-2 Retrofit Field Exciter Board

ABB 3ADT306300R1 SDCS-FEX-2 Retrofit Field Exciter Board: Legacy-Compatible Upgrade for DCS 500 Series DC Drive Systems

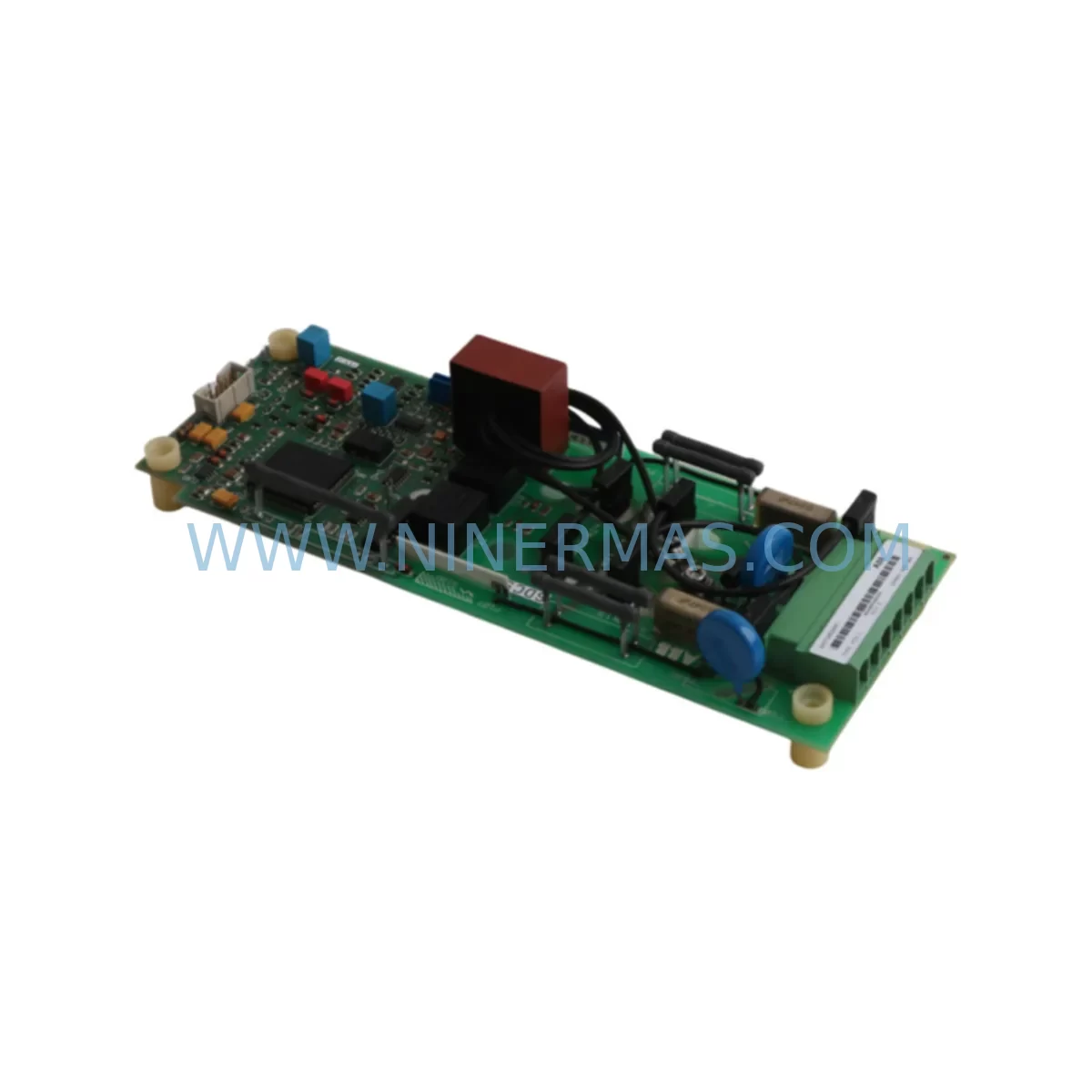

The ABB 3ADT306300R1 (SDCS-FEX-2) is a field exciter board designed for use within the ABB DCS500 series DC drive platform. As legacy DCS500 installations continue to operate across steel mills, paper machines, extruder lines, and heavy-duty crane systems worldwide, the demand for verified retrofit-compatible replacement boards has grown significantly. NINERMAS maintains ready stock of the SDCS-FEX-2 to support planned maintenance windows, emergency breakdowns, and phased modernization projects — all backed by a 12-month warranty and pre-shipment functional testing.

The SDCS-FEX-2 provides regulated DC field excitation to the motor armature circuit, working in close coordination with the main control board SDCS-CON-4 and the power interface board SDCS-PIN-4. When replacing a failed or degraded field exciter, engineers must verify the field current rating, the terminal block wiring layout (typically F1/F2 field output terminals), and the backplane connector alignment before powering up the replacement unit. Incorrect field current settings can result in motor overexcitation or weak field conditions, both of which affect speed regulation and torque response.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SDCS-FEX-2 within an operational DCS500 drive cabinet requires a structured approach. Before the maintenance window begins, the site engineer should document the existing field current setpoint, record all parameter values using the CDP312R control panel or a laptop running DriveWindow, and photograph the terminal wiring on the F1/F2 field output terminals and the backplane connector seating.

In many DCS500 installations, the SDCS-FEX-2 operates alongside the SDCS-IOB-3 I/O extension board, which handles digital and analog I/O signals for process interlocks, speed feedback, and fault relay outputs. If the I/O board is also showing signs of age — intermittent signal loss, relay chatter, or analog drift — it is advisable to inspect and potentially replace it during the same maintenance window to avoid a second unplanned outage.

Power supply integrity is another critical factor. The SDCS-POW-4 auxiliary power supply board feeds the control electronics within the DCS500 frame. A degraded SDCS-POW-4 can cause erratic behavior in the field exciter circuit, leading to misdiagnosis of the SDCS-FEX-2 as the root cause. Always verify DC bus voltage levels and auxiliary supply rails before condemning the field exciter board.

For sites running PROFIBUS DP communication between the DCS500 drive and a Siemens S7 PLC or ABB AC500 controller, the SDCS-COM-81 fieldbus adapter must remain undisturbed during the board swap. Node address settings and baud rate configuration are stored in the adapter, not the main control board, so communication parameters are preserved across a field exciter replacement. However, if the site uses a NINT-42 DeviceNet adapter or a NINT-62 Modbus adapter, the engineer should confirm that the drive’s network node address is correctly re-established after power cycling the cabinet.

HMI screens connected to the DCS500 via the AINT-02C analog interface or a dedicated serial link should be tested for correct speed reference and actual speed feedback display after the replacement. In some older installations, the HMI panel reads field current status as a diagnostic variable — verify this channel is active and reading correctly before releasing the drive back to production.

For larger DCS500 frames where the field exciter is mounted on a dedicated sub-rack, confirm that the SDCS-FEX-31 (the higher-current variant used in larger motor applications) is not the correct part before ordering. The SDCS-FEX-2 and SDCS-FEX-31 are not interchangeable — field current ratings differ, and installing the wrong variant will result in incorrect motor excitation and potential thermal damage to the motor field winding.

Finally, for sites planning a longer-term migration from DCS500 to the newer DCS800 platform, the SDCS-FEX-2 replacement serves as a bridge solution that extends the operational life of the existing installation while the migration project is planned and budgeted. NINERMAS can supply both DCS500 spare boards and DCS800 retrofit kits, supporting a phased transition that minimizes capital expenditure and production disruption.

Downtime Control During System Migration

Minimizing downtime during a field exciter replacement on a DCS500 drive requires preparation, not speed. The most effective approach is to pre-configure the replacement SDCS-FEX-2 off-line before the maintenance window. Using the CDP312R keypad and a parameter backup file exported from the original drive, the engineer can pre-load field current setpoints and protection thresholds into the new board before it is installed in the cabinet.

During the swap itself, the sequence should follow: isolate the drive from the AC supply, discharge the DC bus capacitors, remove the field wiring from the F1/F2 terminals (label each wire before removal), extract the old board from the backplane, seat the new SDCS-FEX-2 firmly into the connector, reconnect field wiring in the correct polarity, and restore power in a controlled sequence. The entire physical swap can typically be completed in under 30 minutes by an experienced drive technician.

After power restoration, perform a no-load field current test before connecting the motor. Verify that the field current ramps to the setpoint smoothly and holds steady. Check for any fault codes on the CDP312R display — common post-replacement faults include field overcurrent (F11) if the setpoint was entered incorrectly, or field open circuit (F12) if a terminal connection is loose. Resolve all faults before returning the drive to automatic control from the PLC or DCS.

For critical production lines where even a 30-minute outage is unacceptable, NINERMAS recommends maintaining a pre-tested, pre-configured spare SDCS-FEX-2 on-site as part of a critical spares inventory strategy. This approach, combined with a documented swap procedure, reduces mean time to repair (MTTR) to under 15 minutes and eliminates the lead time risk associated with emergency procurement.

Retrofit Support FAQ

Q1: Is the 3ADT306300R1 a direct drop-in replacement for the original SDCS-FEX-2 in all DCS500 frame sizes?
A: The 3ADT306300R1 is the standard SDCS-FEX-2 field exciter board compatible with DCS500B and DCS500C frame sizes. For larger DCS500 frames requiring higher field current output, the SDCS-FEX-31 is the correct variant. Always cross-reference the drive’s nameplate and original BOM before ordering to confirm the correct part number.

Q2: Do I need to re-enter all drive parameters after replacing the SDCS-FEX-2?
A: Field exciter-specific parameters (field current reference, field weakening curve, field loss detection threshold) must be re-entered or restored from a parameter backup after replacement. General drive parameters stored in the SDCS-CON-4 control board are not affected by a field exciter swap. Use the CDP312R keypad or DriveWindow software to restore the parameter set.

Q3: What pre-shipment testing does NINERMAS perform on the SDCS-FEX-2?
A: Each unit undergoes functional testing to verify field excitation output, protection circuit response, and backplane connector integrity before dispatch. Units that fail any test criterion are quarantined and not shipped. A test report is available upon request for quality-critical applications.

Q4: What warranty coverage applies to the 3ADT306300R1 supplied by NINERMAS?
A: All SDCS-FEX-2 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team with RMA processing and replacement dispatch within agreed lead times.
