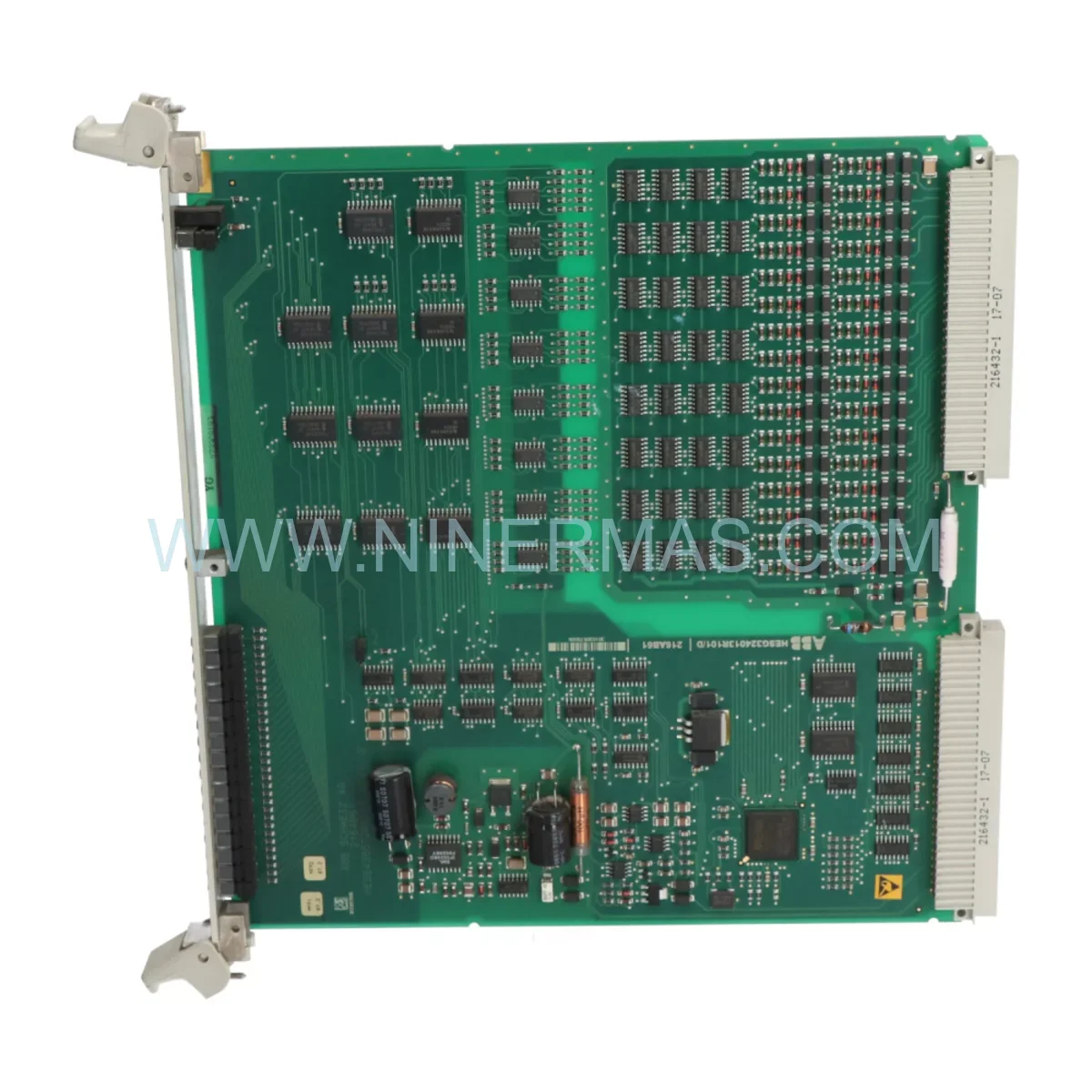

ABB 216AB61 | HESG324013R100 Binary Output Module

ABB 216AB61 – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB 216AB61 (HESG324013R100) represents a cornerstone component in maintaining the operational integrity of mission-critical process control architectures. Its role extends beyond simple signal switching — it serves as a certified interface layer that upholds Safety Integrity standards across distributed control environments, ensuring that every binary output command is executed with deterministic precision and full traceability. The ABB 216AB61 (HESG324013R100) is engineered to sustain long-term compatibility within Industry 4.0 frameworks, where legacy system interoperability and forward-looking digital integration coexist. Its solid-state relay architecture and optical isolation per channel deliver consistent System Performance under variable load conditions, making it a preferred asset for lifecycle-conscious engineers managing multi-decade plant operations. As a factory-certified original component, this module adheres to ABB’s rigorous quality control protocols, providing documented compliance with global industrial safety directives. Deploying genuine OEM parts is not merely a procurement decision — it is a strategic commitment to Asset Optimization and long-term operational continuity backed by Original Documentation.

Compliance & Safety Benchmarks

✅ Certification Compliance: Manufactured under ABB’s ISO-certified production standards, the 216AB61 meets IEC 61131-2 requirements for programmable controller I/O modules, ensuring full regulatory alignment for global deployments.

✅ Electrical Safety & Isolation: Each of the 32 output channels incorporates galvanic optical isolation, providing robust protection against field-side transients and ground loop interference — a critical requirement under IEC 60664 insulation coordination standards.

Thermal & Environmental Durability: Rated for continuous operation from -20°C to +60°C with IP20 ingress protection, this module sustains Standard Adherence in harsh industrial environments including high-humidity process areas and temperature-variable control rooms.

✅ Short-Circuit & Overload Protection: Integrated per-channel protection mechanisms — including thermal overload shutdown and reverse polarity safeguards — ensure that system faults are contained without cascading failures, a fundamental principle of Safety Integrity Level (SIL) compliance frameworks.

Hot-Swap Capability: Supports live module replacement under controlled safety protocols, minimizing Mean Time To Repair (MTTR) and supporting continuous availability requirements in 24/7 production environments.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: In cleanroom automation environments, the 216AB61 provides the deterministic binary output control required for robotic arm sequencing, vacuum valve actuation, and interlock management — where microsecond-level response consistency directly impacts yield rates and contamination prevention.

Pharmaceutical & Life Sciences: GMP-compliant facilities rely on validated control components to maintain batch integrity. The 216AB61’s documented performance characteristics and original certification records support 21 CFR Part 11 and EU Annex 11 validation requirements, reducing qualification overhead during system audits.

Chemical & Petrochemical Processing: In ATEX-adjacent control panel installations, this module manages solenoid valve sequencing, emergency shutdown relay activation, and process interlock logic — applications where component authenticity and Compliance Standards adherence are non-negotiable for personnel safety.

Power Generation & Utilities: Deployed in substation automation and turbine control systems, the 216AB61 interfaces with breaker control circuits and alarm annunciation panels, supporting NERC CIP asset management requirements through traceable component provenance and Original Documentation.

Water & Wastewater Treatment: Municipal infrastructure operators leverage this module for pump station coordination, chemical dosing valve control, and SCADA-integrated alarm management — benefiting from its extended temperature tolerance and long-term Lifecycle Management compatibility with ABB Advant and MOD 300 platforms.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every ABB 216AB61 (HESG324013R100) unit is dispatched in its original factory-sealed packaging, preserving electrostatic discharge (ESD) protection and ensuring that the module arrives in a condition identical to its certified manufacturing state. Tamper-evident seals and original labeling provide full chain-of-custody verification for asset management records.

Rapid Global Logistics: Leveraging established international freight partnerships, we support expedited delivery to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas. Priority shipping options accommodate emergency maintenance scenarios where extended downtime carries significant operational cost.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a comprehensive 12-Month Quality Guarantee, specifically structured to support legacy DCS environments where component sourcing timelines are extended. This guarantee covers manufacturing defects, premature component failure, and functional non-conformance against published ABB specifications.

Technical Support & Documentation: Our engineering support team provides pre-sales configuration consultation, installation compliance guidance, and post-delivery technical assistance. Original Documentation — including ABB datasheet references, wiring diagrams, and firmware compatibility matrices — is available upon request to support system validation and regulatory audit requirements.

Expert Technical FAQ

Q1: How does the ABB 216AB61 (HESG324013R100) comply with IEC 61131-2 installation requirements?
A: The 216AB61 is designed and tested in accordance with IEC 61131-2 environmental and electrical performance standards for programmable controller I/O modules. Installation must follow ABB’s published wiring guidelines, including minimum creepage and clearance distances, to maintain full Compliance Standards certification. Original Documentation from ABB provides the specific installation compliance checklist required for system commissioning records.

Q2: What environmental conditions can this module withstand in field installations?
A: The module is rated for ambient operating temperatures of -20°C to +60°C and storage temperatures of -40°C to +70°C. It carries an IP20 protection rating, making it suitable for installation within enclosed control panels in environments with controlled humidity (5-95% RH, non-condensing). For installations in higher-humidity or corrosive-atmosphere zones, additional enclosure protection is recommended per IEC 60529.

Q3: Is firmware version compatibility a concern when integrating the 216AB61 into an existing ABB DCS?
A: Firmware compatibility depends on the specific revision of the ABB Advant or MOD 300 platform in use. We recommend cross-referencing the module’s hardware revision marking against ABB’s compatibility matrix, available in the Original Documentation. Our technical support team can assist in identifying the correct firmware baseline and any required system configuration updates prior to installation.

Q4: What certifications validate the authenticity and safety compliance of this component?
A: Genuine ABB 216AB61 (HESG324013R100) units carry ABB’s internal quality certification markings and are traceable through ABB’s manufacturing documentation system. Safety Certified status is maintained through adherence to IEC and CE marking requirements applicable at the time of manufacture. Customers requiring formal certification documentation for regulatory audits should request Original Documentation at the time of order.

Q5: Can this module be integrated into a Safety Instrumented System (SIS) application?
A: The 216AB61 is a standard binary output module and is not independently SIL-rated for use as a final element in a Safety Instrumented Function (SIF) without additional system-level safety analysis. For SIS applications, a full Safety Integrity assessment per IEC 61511 must be conducted, incorporating the module’s failure mode data from ABB’s FMEDA documentation. Our team can provide guidance on appropriate application boundaries.

Q6: What is the recommended Asset Optimization strategy for aging 216AB61 units in long-running plants?
A: Lifecycle Management best practice recommends proactive replacement of binary output modules after 10-15 years of continuous service, or upon detection of increased output response latency or intermittent channel faults. Maintaining a certified spare inventory of ABB 216AB61 (HESG324013R100) units — sourced with full Original Documentation — ensures that emergency replacements can be executed without compromising system validation status or triggering full re-qualification procedures.
