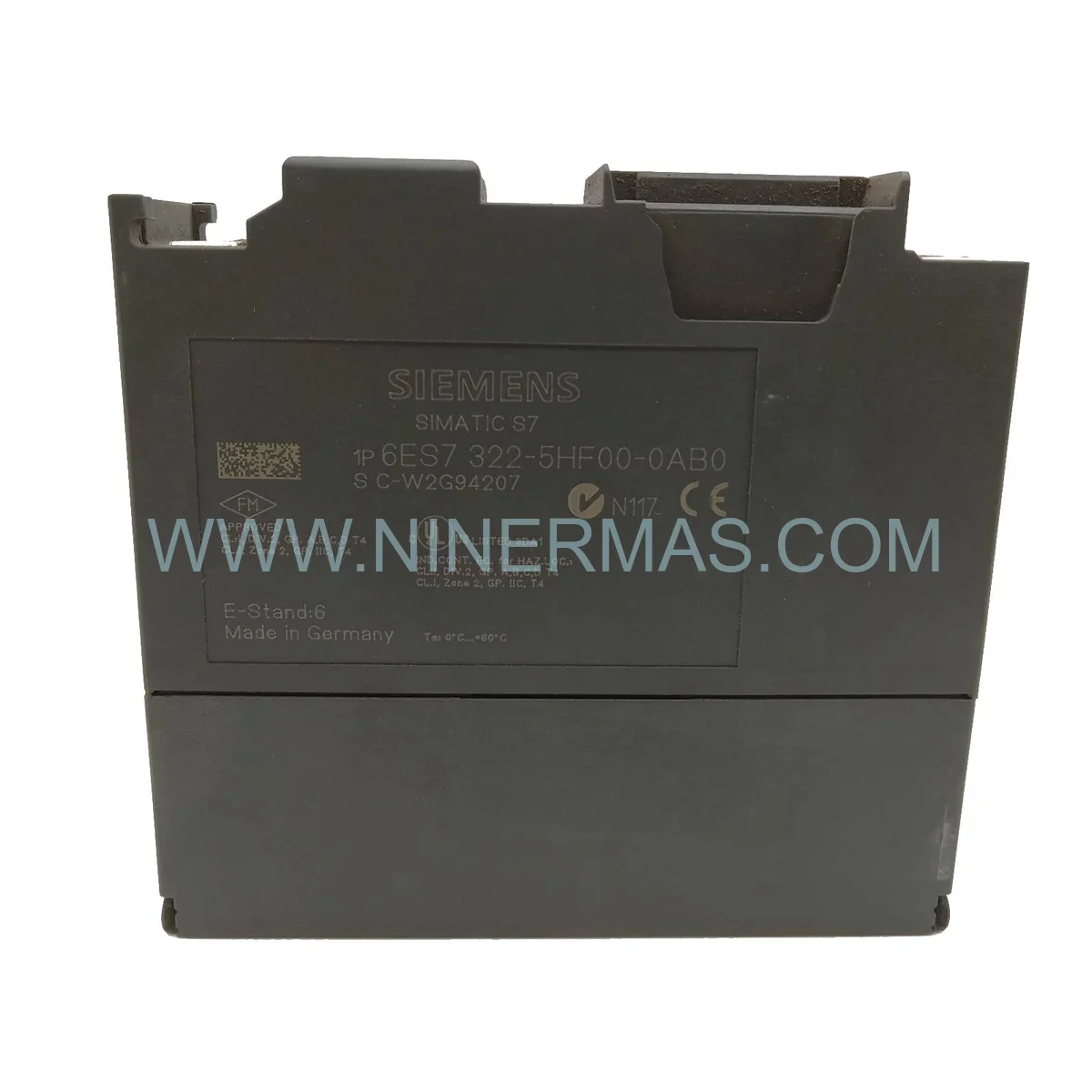

6ES7322-5HF00-0AB0 — Siemens SM 322 Relay Output Module (Industrial-Grade, 100% Original)

As a procurement manager sourcing critical spare parts for continuous-process facilities, you need components that arrive fast, perform flawlessly, and come with verifiable authenticity. The 6ES7322-5HF00-0AB0 is Siemens’ flagship 8-channel relay output module for the SIMATIC S7-300 PLC System, delivering 230 V AC / 5 A isolated switching with integrated per-channel diagnostics. Every unit of 6ES7322-5HF00-0AB0 we supply is 100% Brand New and Factory Sealed in original Siemens packaging — never refurbished, never reconditioned.

Engineered to replace aging or failed SM 322 relay cards in legacy S7-300 Control Module racks, this Original New spare part eliminates unplanned downtime across Oil & Gas, Power Generation, Chemical Processing, and Heavy Manufacturing environments. Its change-over (CO) contact architecture and robust suppression circuitry make it the go-to Industrial Automation solution for high-inrush loads that would destroy lesser output cards.

Whether you’re managing an emergency breakdown or planning a scheduled maintenance window, our global stock and 2-day express shipping ensure the 6ES7322-5HF00-0AB0 reaches your site without delay. Contact us today for a competitive quote and same-day dispatch confirmation.

Core Features & Technical Advantages

• 8 Independent Relay Outputs — 1 change-over (CO) contact per channel for maximum wiring flexibility in fail-safe logic designs
• Heavy-Duty Switching Capacity — 5 A @ 230 V AC / 30 V DC per channel; directly drives large contactors, solenoid valves, and industrial heaters without auxiliary relays
• Precision Per-Channel Diagnostics — Open-circuit and short-circuit detection reported to the CPU via OB82, enabling predictive maintenance and rapid fault isolation
• Robust Isolation — 1,500 V AC channel-to-backplane isolation protects the PLC System from field-side transients and ground faults
• Built-In Suppression — RC network + varistor on every output suppresses inductive kickback, extending relay life to 100,000 cycles at 5 A inductive load
• Seamless S7-300 Integration — Plug-and-play replacement within any SIMATIC S7-300 rack; no firmware update required
• 100% Original and Brand New — Supplied with Siemens factory seal, CE marking, and full traceability documentation

Technical Specifications & Selection Guide

Selection Guide: Choose the 6ES7322-5HF00-0AB0 when your application requires isolated relay outputs with CO contacts and integrated diagnostics. For higher channel density (16 outputs), consider the SM 322 6ES7322-1BL00-0AA0. For transistor outputs with faster switching, the 6ES7322-1BH01-0AA0 is the appropriate alternative.

Typical Application Scenarios

✅ Oil & Gas Processing Plants
Wellhead control panels and separator skids rely on isolated relay outputs to switch high-voltage solenoid valves and ESD actuators. The 6ES7322-5HF00-0AB0’s CO contacts and 1,500 V isolation prevent ground-loop interference in hazardous-area installations.

Power Generation & Utilities
Turbine auxiliary control systems demand relay modules that survive high-inrush motor starts. The 5 A rating and built-in RC suppression of this Spare Parts module protect the PLC System from voltage spikes during generator synchronization sequences.

✅ Chemical & Pharmaceutical Manufacturing
Batch reactor dosing systems require precise, diagnostics-enabled switching. Per-channel fault reporting via OB82 allows the Control Module to detect a failed relay before it causes a batch loss — a critical advantage in GMP-regulated environments.

✅ Steel Mills & Heavy Industry
Crane hoist and furnace door control applications subject relay outputs to extreme inductive loads. The 100,000-cycle electrical life rating of the 6ES7322-5HF00-0AB0 makes it the preferred Industrial Automation choice for 24/7 heavy-duty operations.

✅ Marine & Offshore Systems
Vessel automation and offshore platform control systems operating under DNV/ABS class requirements benefit from the module’s robust isolation and diagnostic transparency, reducing unscheduled maintenance during voyages.

Logistics & Professional Service

• ✅ 2-Day Express Shipping — Global dispatch from EU and US bonded warehouses; DHL / FedEx priority freight available for emergency breakdowns
• ✅ 1-Year Warranty — Full replacement guarantee covering manufacturing defects; warranty certificate issued with every shipment
• ✅ EOL Legacy System Support — We specialize in sourcing discontinued and end-of-life Siemens SIMATIC S7-300 Spare Parts, ensuring your legacy PLC System remains operational without costly platform migrations
• ✅ Full Documentation Package — Siemens datasheet, CE declaration of conformity, and country-of-origin certificate provided upon request
• Customs & Export Compliance — HS code classification, export licensing, and commercial invoice preparation handled by our logistics team

FAQ (Frequently Asked Questions)

Q1: What is the lead time for the 6ES7322-5HF00-0AB0?
A: Units in stock ship within 24 hours of order confirmation. Standard international delivery takes 3-5 business days via DHL Express. For urgent breakdown situations, same-day dispatch with next-flight-out courier is available — contact sale@ninermas.com with your site location for a precise ETA.

Q2: Is this 6ES7322-5HF00-0AB0 genuinely original Siemens, or a compatible substitute?
A: Every unit is 100% Original and Brand New, sourced directly from Siemens-authorized distribution channels. We do not supply clones, compatible replacements, or refurbished units. Factory seal and Siemens holographic label are intact on delivery.

Q3: Can you provide the official Siemens datasheet for the 6ES7322-5HF00-0AB0?
A: Yes. The full Siemens SIMATIC S7-300 SM 322 datasheet (document number 6ES7322-5HF00-0AB0 Manual) is available upon request. Email sale@ninermas.com and our technical team will send the PDF within 2 business hours.

Q4: What is the price for the 6ES7322-5HF00-0AB0, and do you offer volume discounts?
A: Our listed price is competitive with the global industrial spare parts market. Volume discounts are available for orders of 3+ units, and framework agreements with quarterly pricing locks are offered to MRO procurement teams. Request a formal quotation via sale@ninermas.com or WhatsApp +0086 187 5021 5667.

Q5: Is the 6ES7322-5HF00-0AB0 compatible with all S7-300 CPU variants?
A: Yes. The SM 322 relay output module is compatible with all SIMATIC S7-300 CPUs (CPU 312 through CPU 319) and integrates with both centralized and distributed ET 200M I/O configurations. No hardware or firmware modifications are required.

Q6: Do you provide a Certificate of Origin or country-of-origin documentation?
A: Yes. A Siemens-issued Certificate of Origin (Germany) is available for customs clearance and import duty purposes. This document is included in the standard shipping package or can be provided electronically in advance of shipment.
