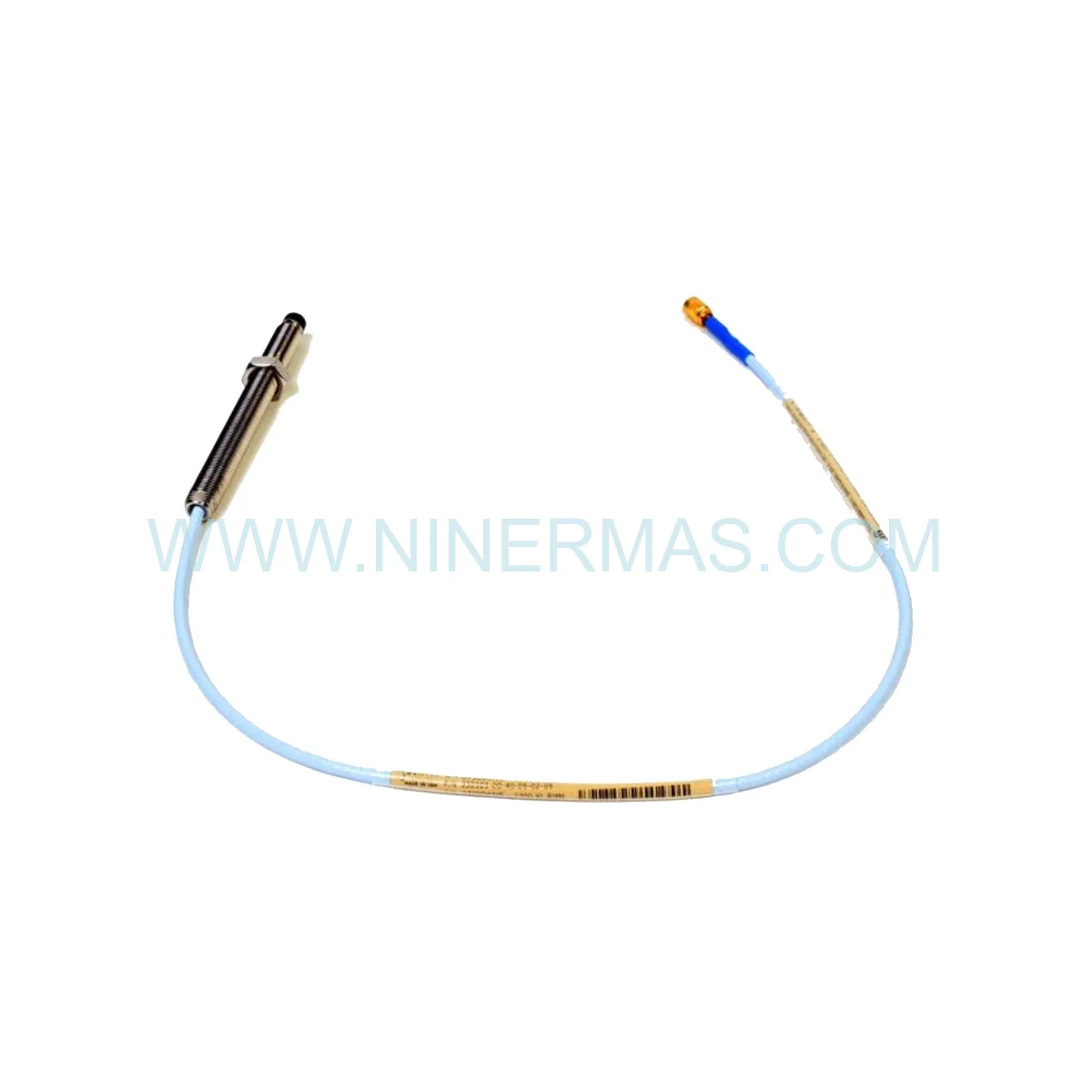

330140-08-10-02-05-00 Bently Nevada 3300 XL 8mm Proximity Probe — New & Original

Bently Nevada 330140-08-10-02-05-00 | Reliable Automation Component for Mission-Critical Rotating Machinery

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer operating in continuous-process industries, the Bently Nevada 330140-08-10-02-05-00 represents a cornerstone asset in sustaining system availability across turbine, compressor, and pump trains. This 8mm proximity transducer probe, part of the field-proven 3300 XL platform, delivers non-contact shaft displacement and vibration measurements with the precision demanded by API 670-compliant protection systems. Its integration into mission-critical monitoring architectures directly reduces mean time between failures (MTBF) and supports proactive maintenance scheduling — a decisive advantage in facilities where unplanned downtime carries six-figure hourly costs.

Engineered for operational excellence in harsh industrial environments, the 330140-08-10-02-05-00 withstands ambient temperatures ranging from -40°C to +105°C, resists chemical exposure, and maintains calibration stability under continuous mechanical vibration. Installation requires strict adherence to gap voltage settings (typically -10 VDC at mid-range) and proper torque specifications on the 5/8-18 UNF-2A thread to prevent probe drift. Shielded cable routing away from high-voltage conductors is essential to preserve signal integrity in electrically noisy plant environments.

For maintenance planners and reliability teams, stocking the 330140-08-10-02-05-00 as a certified spare eliminates critical lead-time risk. With many legacy 3300 XL installations still active across global power generation and petrochemical facilities, securing original factory units ensures seamless swap-out without recalibration of the entire monitoring loop — a process optimization that directly protects production continuity.

Key Operational Features

Non-Contact Measurement: Eliminates mechanical wear; sustains high availability in continuous-duty rotating equipment applications.
API 670 & ISO 20816 Compliance: Meets international standards for machinery protection system integration.
Wide Thermal Operating Range: -40°C to +105°C — qualified for both arctic and high-temperature process environments.
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL proximitor/driver modules for plug-and-play replacement.
Redundancy-Ready Design: Supports dual-probe redundant configurations for critical machinery protection loops.
Stainless Steel Housing: Corrosion-resistant construction rated for aggressive chemical and humidity exposure.
Frequency Response 0-10 kHz: Captures full-spectrum vibration data for advanced diagnostic analysis.

Maintenance & Performance Benchmarks

The 330140-08-10-02-05-00 is architected to adapt across diverse industrial network scales — from standalone single-train monitoring on auxiliary equipment to fully integrated, multi-channel DCS/SCADA architectures managing hundreds of measurement points simultaneously.

In small-to-mid-scale installations, this probe interfaces directly with a single 3300 XL proximitor module, feeding 4-20 mA or voltage outputs to local panel indicators or safety PLCs. In large-scale process optimization environments — such as combined-cycle power plants or LNG compression trains — the probe operates within redundant I/O module arrays, where its signal is cross-validated against complementary sensors to trigger automated protective shutdown sequences. This layered approach to system integration ensures that a single sensor anomaly does not compromise overall plant safety logic.

Recommended maintenance intervals: gap voltage verification every 6 months, full probe-to-proximitor loop calibration every 24-36 months, and visual inspection of cable armor and connector seals during each planned outage. Adherence to these benchmarks consistently extends probe service life beyond 10 years in controlled environments.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 330140-08-10-02-05-00 unit dispatched from our inventory is supplied in original factory packaging, complete with manufacturer documentation, calibration data sheets, and tamper-evident seals — ensuring full traceability from production to installation.

For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff times apply by region). Our global supply network is specifically structured to support end-of-life (EOL) and legacy module sourcing, addressing the chronic availability gaps that affect aging 3300 XL installations worldwide. Whether your facility requires a single replacement probe or a bulk procurement for a multi-site reliability program, our sourcing team delivers with speed and full documentation compliance.

Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific within 3-7 business days. All shipments include commercial invoice, packing list, and certificate of conformance upon request.

Engineering Support & FAQ

Q1: What are the correct installation steps for the 330140-08-10-02-05-00?
A: Mount the probe in the designated bracket, thread to finger-tight, then advance to achieve a gap of approximately 1.5 mm (60 mils) from the shaft surface — corresponding to a proximitor output of approximately 10 VDC. Secure with locknut to the specified torque. Verify gap voltage at the proximitor terminal before energizing the monitoring system.

Q2: Which firmware versions are compatible with this probe?
A: The 330140-08-10-02-05-00 is a passive transducer and does not contain embedded firmware. Compatibility is determined by the paired proximitor/driver module. It is fully validated with all Bently Nevada 3300 XL proximitor revisions. Consult your DCS or safety system vendor for I/O module firmware requirements.

Q3: Is this probe backward-compatible with earlier 3300 series (non-XL) systems?
A: Yes. The 330140-08-10-02-05-00 maintains electrical and mechanical compatibility with earlier 3300 series proximitor modules, enabling direct replacement without loop reconfiguration in most legacy installations.

Q4: How does the warranty claim process work?
A: Units exhibiting defects in materials or workmanship within 12 months of shipment are eligible for replacement or credit. Contact our technical support team with the original order reference and a brief fault description. Return authorization (RMA) is issued within 1 business day, and replacement units are dispatched upon receipt of the defective item.

Q5: Can this probe be used in ATEX-classified hazardous areas?
A: When installed in conjunction with appropriately certified Zener barriers or galvanic isolators and a compatible ATEX-rated proximitor module, the 330140-08-10-02-05-00 supports Zone 2 (Gas Group IIC) applications. Always verify the complete loop certification against your site’s area classification documentation.

Q6: What is the recommended spare parts strategy for this model?
A: Reliability best practice recommends maintaining a minimum of one probe per critical machine train as a cold standby spare. For facilities with 10+ monitored assets, a pooled inventory of 3-5 units optimizes cost while ensuring sub-24-hour restoration capability following an unplanned failure event.
