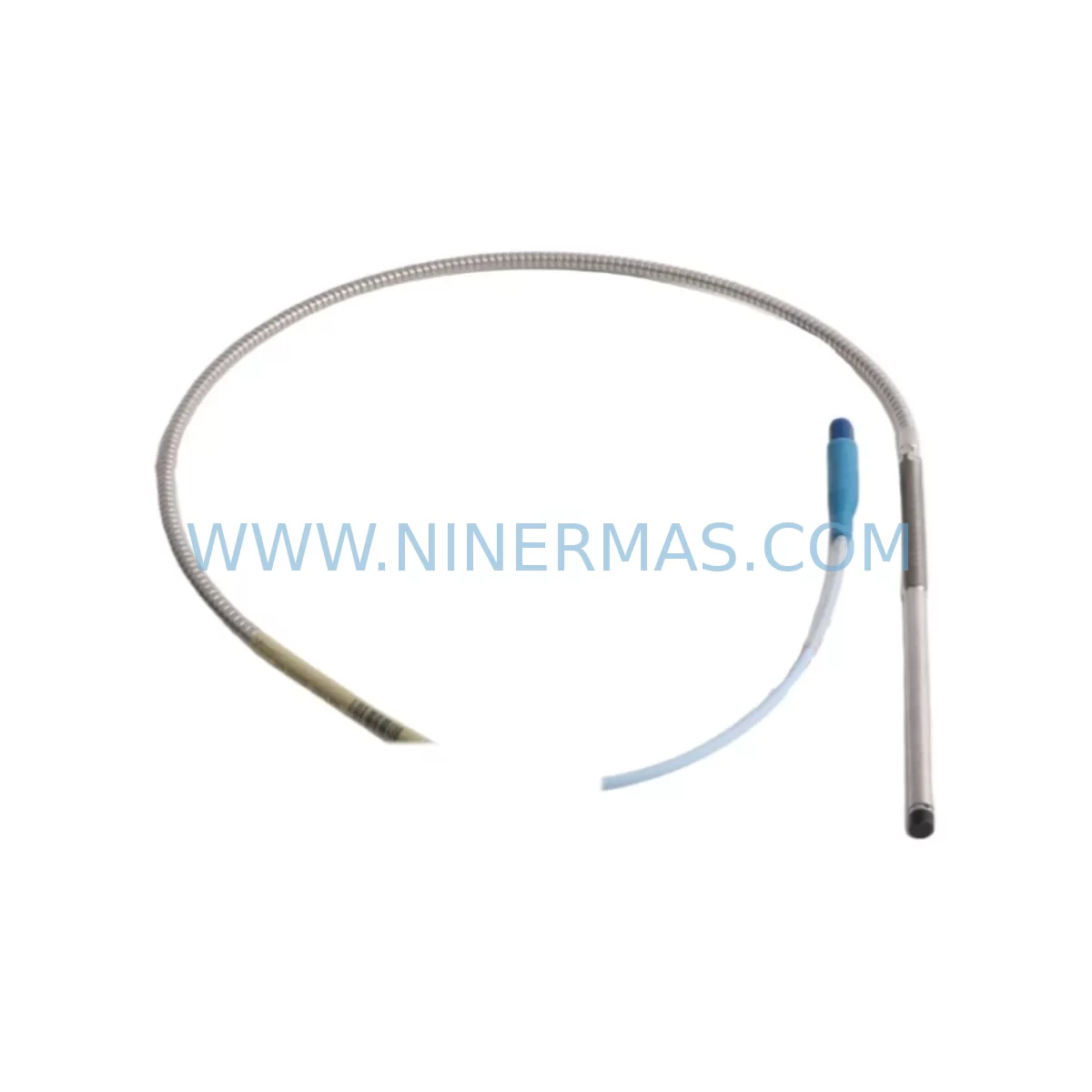

Bently Nevada 330104-10-16-10-02-00 Retrofit Proximity Probe

Bently Nevada 330104-10-16-10-02-00 Retrofit-Compatible Proximity Probe Module for Legacy Automation Systems

The Bently Nevada 330104-10-16-10-02-00 is a ruggedized proximity probe module engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy 3300 Series installations reach end-of-life, this module serves as a direct retrofit-compatible replacement, enabling plant engineers to restore full monitoring capability without redesigning the existing rack architecture, rewiring terminal blocks, or reprogramming the host monitoring system. Whether you are upgrading a turbine protection panel, modernizing a compressor train monitoring cabinet, or extending the service life of an existing Bently Nevada 3300 rack, the 330104-10-16-10-02-00 delivers the signal conditioning, output range, and connector compatibility required for a smooth, low-risk transition.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-10-16-10-02-00 into an existing monitoring architecture begins with a thorough review of the host rack configuration. In most 3300 Series installations, the rack houses a combination of monitor modules, power supply modules, and transducer interface cards. Before removing the failed or obsolete module, engineers should document the current slot address, terminal block wiring layout, and any jumper or DIP switch settings that define the module’s operating range and OK relay behavior.

Power supply capacity is a critical first checkpoint. The 3300 Series rack power supply — commonly the 3300/15 Power Supply Module — must be verified to have sufficient headroom to support the replacement module without causing voltage sag on adjacent cards. If the rack is already operating near its rated load, a power budget review should be completed before the retrofit proceeds.

Terminal block wiring for the 330104-10-16-10-02-00 follows the standard Bently Nevada probe-driver-monitor chain. The field wiring connects the proximity probe body through an extension cable — typically an 330130 or 330180 Series extension cable — to the driver, and then from the driver output to the monitor module terminal block. Each connection point should be inspected for corrosion, insulation integrity, and correct torque before the new module is energized. Incorrect wiring at the driver-to-monitor interface is one of the most common causes of commissioning delays during 3300 Series retrofits.

For installations where the 330104-10-16-10-02-00 is replacing a module in a rack that also contains a 3300/55 Dual Voting Logic Module or a 3300/46 Overspeed Detection Module, the retrofit team must confirm that the OK relay chain and voting logic remain intact after the swap. Changes to the module’s OK relay output polarity or setpoint can inadvertently trigger a plant trip if the downstream safety logic is not reviewed in advance.

In control cabinets where the monitoring rack interfaces with a DCS or safety instrumented system via 4–20 mA analog signals, the retrofit team should verify that the replacement module’s output scaling matches the existing loop calibration. If the host DCS — such as a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — has hardcoded engineering unit conversions tied to the original module’s output range, those parameters may need to be updated in the DCS configuration after the module swap.

Where the existing installation includes a System 1 condition monitoring software connection, the probe channel configuration within the software database should be reviewed to confirm that the transducer scale factor, gap voltage reference, and alarm setpoints remain valid for the replacement module. Mismatched scale factors between the physical module and the software configuration are a known source of false alarms and missed fault detection in post-retrofit commissioning.

For plants operating Bently Nevada 3500 Series racks alongside legacy 3300 Series equipment, the 330104-10-16-10-02-00 provides a cost-effective way to maintain the 3300 infrastructure while a phased migration to the 3500/42 Proximitor/Seismic Monitor or 3500/40M Proximitor/Seismic Monitor is planned. This approach avoids a full rack replacement during a single outage window and allows the plant to prioritize the most critical measurement points for early migration.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 Series proximity probe module replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330104-10-16-10-02-00 should be bench-tested using a calibrated gap simulator to confirm that the output voltage, OK relay operation, and signal conditioning performance meet specification. Shipping the module directly to site without pre-shipment testing is a common source of extended outages when a fault is discovered only after the original module has been removed.

During the outage, the recommended sequence is to first place the affected monitor channel in bypass within the safety system or DCS, then remove the original module, install the 330104-10-16-10-02-00, restore all terminal block connections, and perform a gap voltage verification at the probe tip before re-energizing the channel. This sequence protects the original program logic in the host controller and prevents nuisance trips during the transition.

For installations where the proximity probe monitors a critical shaft position or radial vibration channel on a turbine, compressor, or pump, the bypass period should be kept as short as possible. Having a pre-configured spare module on site — rather than ordering after failure — is the single most effective way to reduce mean time to repair. NINERMAS maintains in-stock inventory of the 330104-10-16-10-02-00 to support emergency and planned maintenance requirements with short lead times.

After the module is installed and the channel is re-enabled, the commissioning team should verify the full signal chain from probe tip to DCS input, confirm that the System 1 or equivalent condition monitoring software is receiving a valid signal, and document the as-left gap voltage and output reading for the maintenance record. This documentation supports future troubleshooting and provides a baseline for predictive maintenance trending.

Retrofit Support FAQ

Q: Is the 330104-10-16-10-02-00 a direct drop-in replacement for other 330104 suffix variants?
A: The 330104 series uses suffix codes to define cable length, temperature rating, and connector configuration. Before substituting a different suffix variant, confirm that the probe body length, extension cable type, and driver gap range are compatible with your existing installation. NINERMAS can assist with cross-reference verification prior to order.

Q: What pre-shipment testing is performed on the 330104-10-16-10-02-00?
A: Each unit supplied by NINERMAS is functionally tested before shipment to verify output signal integrity, OK relay operation, and connector condition. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: Can this module be used in a 3500 Series rack as a migration step?
A: The 330104-10-16-10-02-00 is designed for 3300 Series rack installations. For 3500 Series racks, the appropriate interface modules are the 3500/42 or 3500/40M Proximitor/Seismic Monitor cards. NINERMAS stocks both 3300 and 3500 Series components to support phased migration projects.

Q: What is the typical lead time and inventory availability?
A: NINERMAS maintains in-stock inventory of the 330104-10-16-10-02-00 to support both emergency replacement and planned maintenance schedules. Contact our team for current stock status and expedited shipping options.
